Reach is measured from the end of the cab, unlike the center post as most makers do.To give you an idea, we’ve listed the specifications to provide an accurate representation.
We offer a variety of attachments for your excavator.
20- SERIES Contact us for pricing
- Z20 series

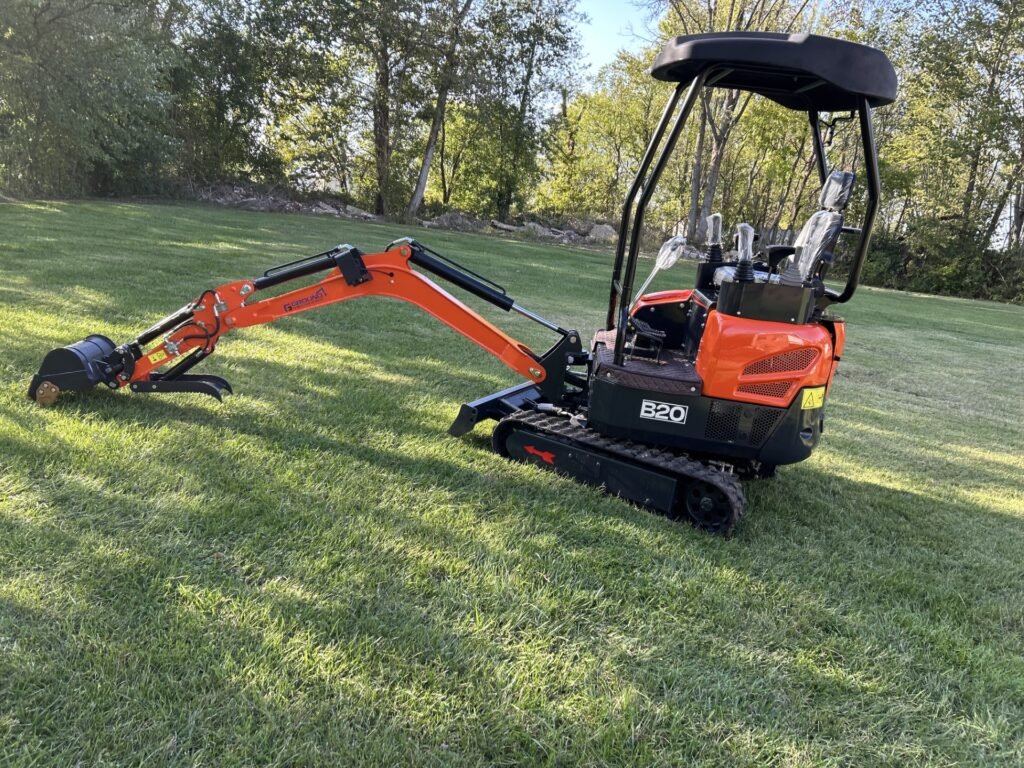

- B20 series
- K20 series
KUBOTA Diesel V1505
| Main Dimensions | |
|---|---|
| Overall Dimension (L*W*H) | 8'4" x 3'1" x 4'6" |
| Wheelbase | 2' 6" |
| Total Length of Track | 3' 7" |
| Platform Ground Clearance | 1' 3" |
| Platform Back Turning Radius | 2' 5" |
| Chassis Width | 3'1" |
| Track Width | 7" |
| Chassis Ground Clearance | 1' 3" |
| Track Height | 1' 1" |
| Operating Range | |
|---|---|
| Max. Digging Depth | 5' 9" |
| Max. Vertical Digging Depth | 4' 6" |
| Max. Digging Height | 8' 7" |
| Max. Dumping Height | 6' 1" |
| Max. Digging Radius on Ground | 9' 4" |
| Min. Rotation Radius | 4' 4" |
| Max. Upgrade Height of Bulldozer Blade | 1' 2" |
| Max. Digging Depth of Bulldozer Blade | 10" |
